"Double-Scotch" gate

7 metre wide, post and barbed-wire gate, easily built, inexpensive, lockable, opens quickly to let stock or machinery through, quickly recloses and re-locks, difficult to climb, permissive squeeze-through available, held open by post and chain, matches the adjoining post and barbed wire fence.
A traditional Scotch gate, is miserly on components and cost.
Designed and erected by John Palmer Aug 2009.
Vandal-proofing improvements made Apr 2010. Named by Rosie Palmer.

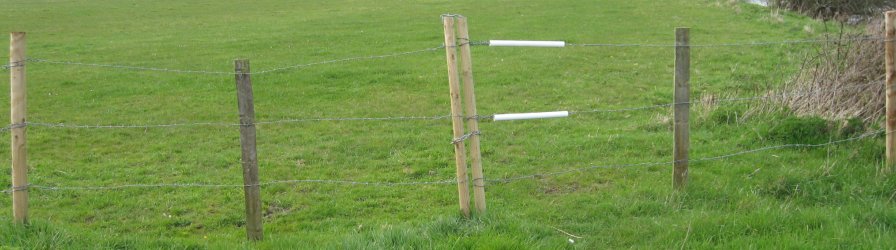

Two end round posts in ground, two floating half-round posts, two central posts inserted loose in metal ground sockets and chained and locked together.

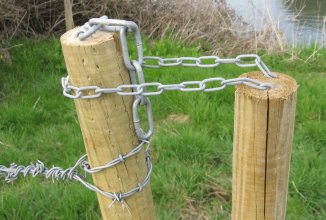

Lock and captive chain.
Nail and stapled chain.
Permissive squeeze-through.
Chain keeps gate open.
